How to Clean & Care for your Quad Door Fridge

Issue

How to Clean & Care for your Quad Door Fridge

Applies to

• Quad Door Fridge
• AQE5300BA

Solution

Before cleaning

Turn appliance off at the power point, then remove power cord from socket.

This will make sure there is no chance of getting an electric shock.

Doors and Exterior

You should only clean the doors with lukewarm soapy water and a soft cloth. Rinse with clean water and then wipe the surface with clean water and a soft clean

Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

Door seals

Take care and ensure to keep door seals clean. Sticky food and drink can cause seals to stick to the cabinet and tear when you open the door.

Wash seal with mild detergent and warm water.

Rinse thoroughly and dry.

Interior

You should clean the appliance interior regularly. It will be easiest to clean when the food supply is low.

Wash the interior with a soft cloth and use an unscented mild soap with luke-warm water. Thoroughly dry all surfaces and removable parts.

Avoid getting water on appliance controls.

Clean the control panel with moist cloth.

Do not use any detergents.

After cleaning, wipe the control panel dry with a soft cloth.

If you have taken out any removable parts, replace them and switch the power on before re-stocking the appliance with food.

Naturally, you should keep the interior of your appliance hygienic by promptly and thoroughly wiping up any food spills.

Warning:

Never use hot water, solvents, commercial kitchen cleaners, aerosol cleaners, metal polishes, caustic or abrasive cleaners, or scourers to clean this appliance, as they will damage it. Many commercially available cleaning products and detergents contain solvents that will damage your refrigerator.

When cleaning, use only a soft cloth with an unscented mild soap and lukewarm water.

Glass Shelf Removal and Installation

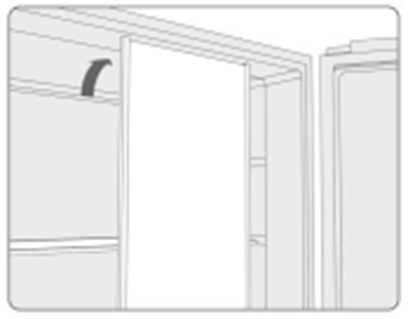

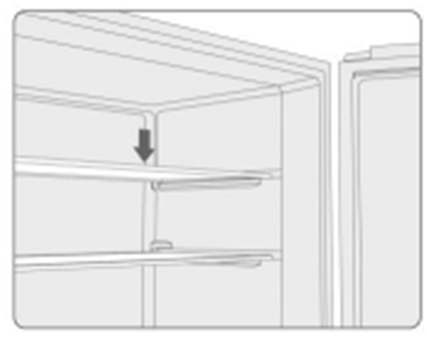

When the refrigerator door is fully open, press down on the front edge of the glass shelf to release the rear clips from their slots

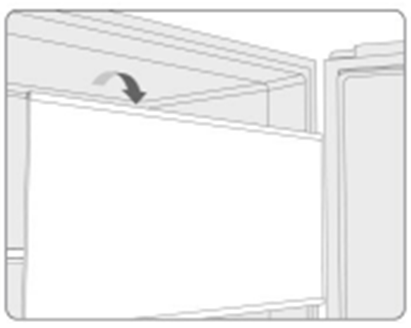

While pulling the glass shelf forward, rotate it downward so that both ends hang in the gap between the cabinet and the door.

Keeping it steady in the vertical position, rotate the glass shelf to complete removal.

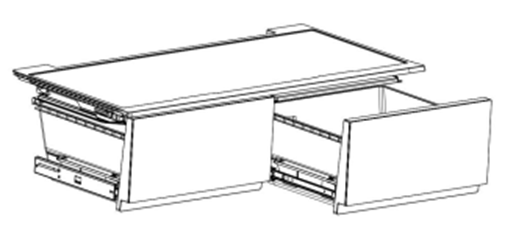

Removing the refrigerator drawer

Pull the drawer out until it stops.

Lift the front slightly and slide the drawer out.

Note:

Handle the tempered glass shelf with care to avoid personal injury or property damage.

The shelf may break suddenly if scratched, engraved, or exposed to rapid temperature changes.

Before cleaning, allow the glass shelf to stabilize at room temperature.

Do not clean in a dishwasher

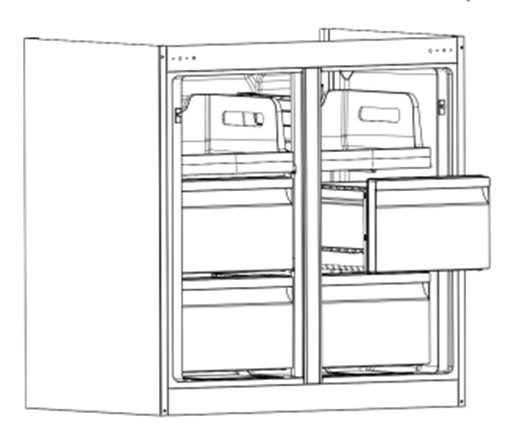

Removing Freezer Drawers:

Fully open the door and locate the drawer.

Pull the drawer out and lift it to remove from the compartment.

To reinstall, reverse the above steps.

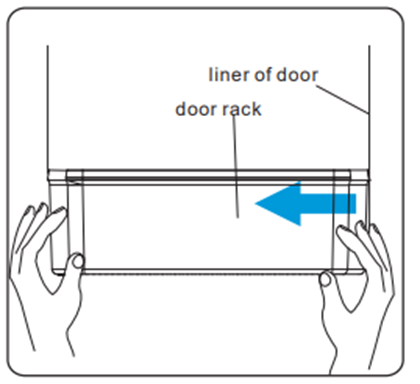

Bottle Holder Removal/Installation

Removal: Hold both sides of the door bottle holder and push inward firmly. Once the edge clips detach from the inner liner slots, the holder can be removed.

Installation: Hold both sides of the holder, first secure the clip on the protruding side into place, then gently push the other side inward until it snaps into position.

Note: Avoid using excessive force during removal to prevent cracking the door bottle holder.
