How to set up AutoDose on your AEG washing machine

Issue

How to set up AUTO DOSE on your AEG washing machine

Applies to

• Front Load Washer

Solution

The factory pre-set doses for a large load are 90 ml for detergent tank and 25 ml for fabric softener tank: the optimal configuration to meet majority of use condition. The appliance will use these settings to calculate the precise dosage for each wash based on load size.

1.When the activated tank reaches a low level of detergent, related indicator blinks slowly and continuously on the display.

Note: If the tanks are filled before the appliance is powered on for the first time, the AutoDose indicator will not blink.

Note: Do not refill the AutoDose tanks unless appliances indicates that one or both tanks are empty.

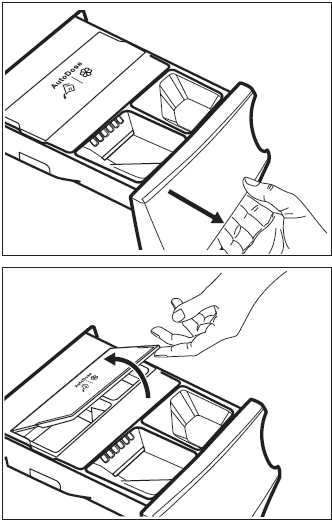

2. Open the detergent dispenser and lift up the AutoDose cover lid.

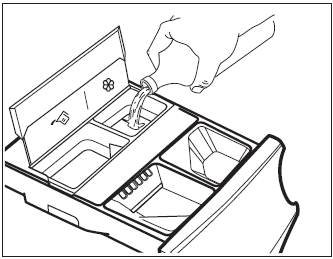

3. Gently pour only liquid detergent in the AutoDose detergent tank.

• Fill up to the maximum indicated level MAX.
• Check concentration on the back of the detergent.

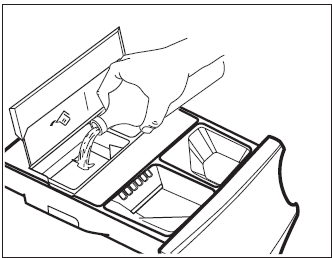

4. Gently pour only liquid softener in the AutoDose fabric softener tank.

• Fill up to the maximum indicated level MAX.
• no need to check concentration for softener.

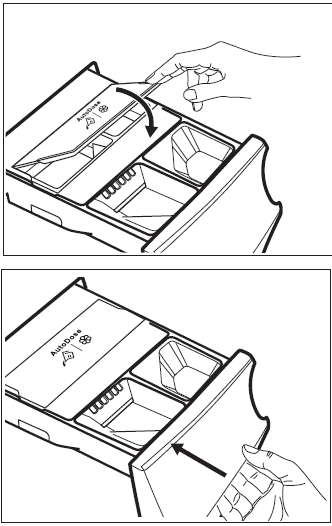

5. Lift down the AutoDose cover lid and gently close the detergent dispenser, till click engagement.

6. AutoDose can be deactivated the following way:

Once entered the AutoDose configuration mode by pressing Temp. and the Spin buttons:

• Tap on the button or button until display shows OFF: the AutoDose is excluded completely for related tank or both.
• After about 10 seconds the display returns to the programme information screen.
