Heat Pump Dryer SteamCare – How to clean filter and empty steam system container
Issue
Heat Pump Dryer SteamCare – How to clean filter and empty steam system container
Applies to
- Heat Pump Tumble Dryer
Solution
Cleaning the steam system filter
If the ‘Steam Filter symbol’ (clean the steam system filter is on the display you must clean the filter.
Note: Do not use the steam programs without the steam system filter or with damaged or blocked filter
To clean the steam system filter

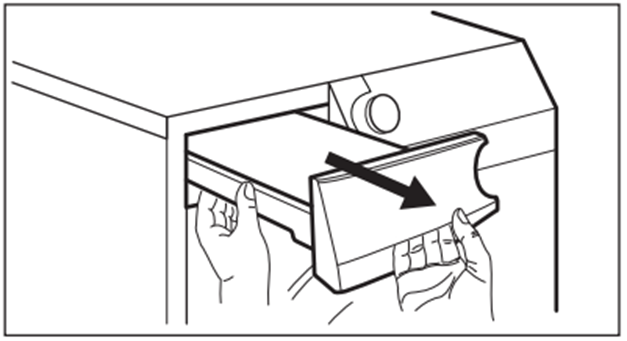

Pull the water container. Keep it in horizontal position.

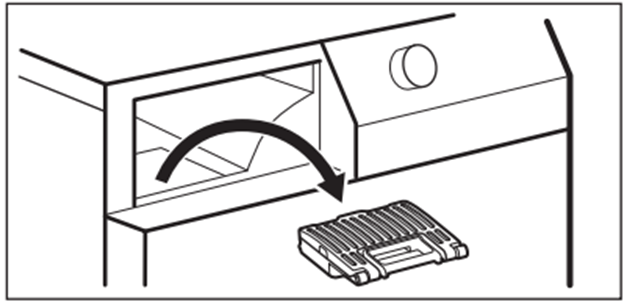

Remove the filter

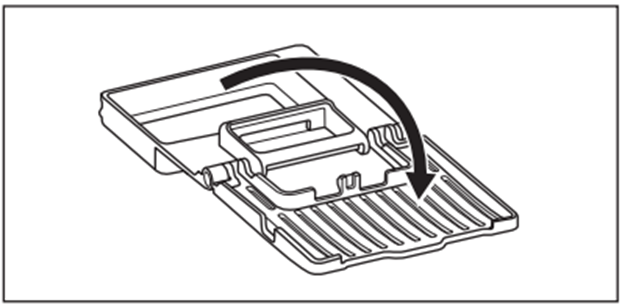

Open the filter

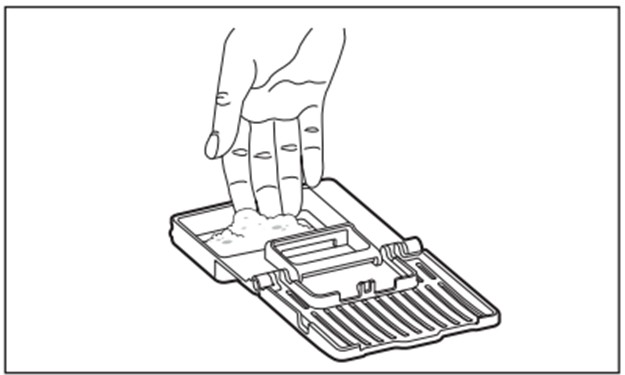

Use a moist hand to clean the filter
Put the filter inside the filter socket.
Insert the water container.
How to drain the water from the steam system container
Note: The quality of the water in the container can deteriorate. If you will not use the appliance for long period drain the water from the container.
Open the door.

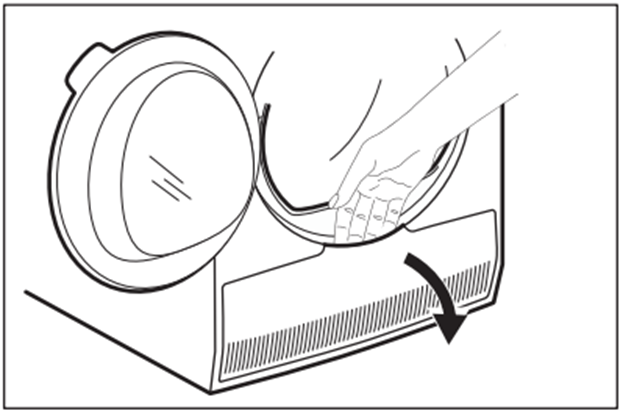

Open the condenser cover.

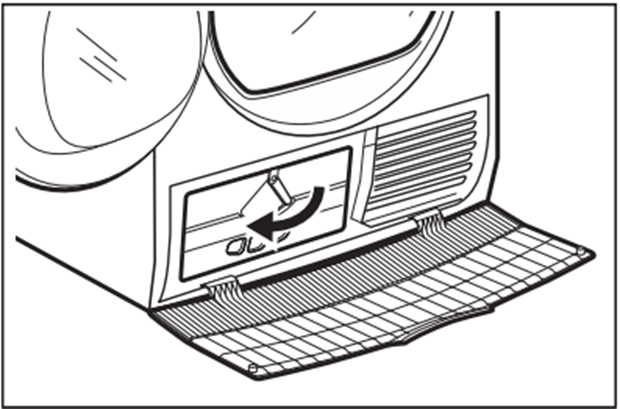

Turn the lever to unlock the condenser lid and lower the condenser lid.

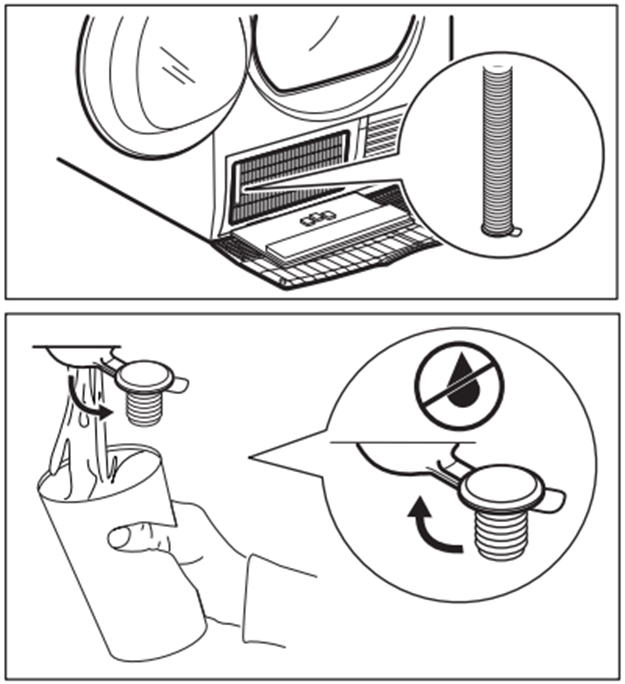

Take the pipe placed on the left wall of the compartment. Open the cap to drain the water.
- Close the cap.
- Place the pipe back on its seat.
- Close the condenser lid.
- Turn the lever to lock the condenser lid.
- Close the condenser cover.
