Microwave - the interior light is not working lamp replacement instructions

Issue

Built-in Microwave combination interior light replacement instructions

Applies to

• Microwave Combination Oven

Solution

These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance.

Replacing the lamp

Turn off the oven. Wait until the oven is cold.

Disconnect the oven from the mains, by switching off at the circuit breaker

For product with side lamp - Remove the left shelf support to get access to the lamp

Put a cloth on the bottom of the cavity

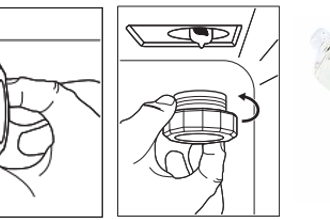

Turn the glass cover counterclockwise to remove it.

Clean the glass cover.

Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp

Replace the lamp with an applicable 300 °C, G9 230V 25W heat resistant lamp.

Install the glass cover.

After lamp replacement, should the oven lamp still not operate, we recommend contacting an Authorized Service Center.
